The Pendulum CNT-90XL Pulsed RF Microwave Frequency Counter/Analyzer is an excellent tool for measurement, analysis and calibration of Microwave Frequency, Power, and Pulsed RF time parameters like pulse width and PRI. Whether in test systems, on the R&D bench, in the calibration lab or out in the field, the high-resolution and ultra-fast CNT-90XL is the state-of-the-art Microwave Counter/Analyzer.
The new pulsed RF option enables measurements of pulses down to 30 ns width, plus PRI/PRF, frequency in burst and power in burst making CNT-90XL ideal for radar test and calibration.

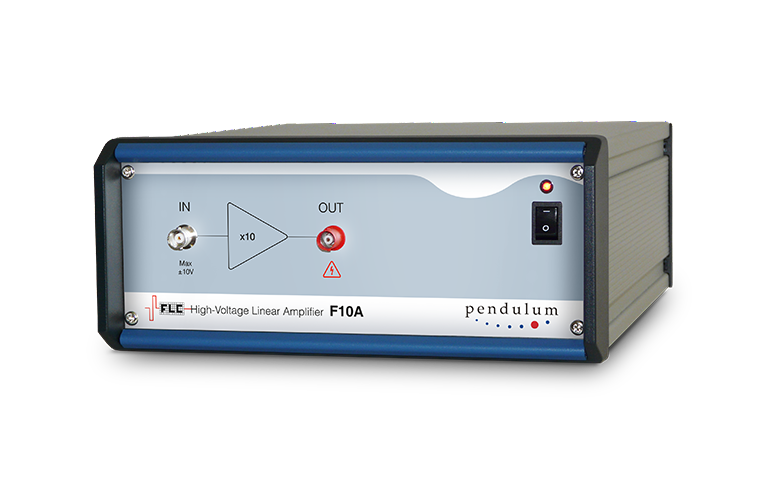

The Pendulum Instruments High Voltage Linear Amplifier F10A has a fixed amplification of 10 times and capable of bipolar high voltage output of ±100V. Any signal source with amplitude up to ±10 V can be used as an input device.
The input amplitude should normally be kept within ±10 V. The F10A High Voltage Linear Amplifier is equipped with a microfuse rated at 15 mA, which will be blown if the input voltage exceeds 300% of the maximum.
New industry standard for EMC scanning.High-resolution and affordable scanning.
The SCN series comes in three different sizes to fit most DUTs and combine very-high scan resolution of 0.1 mm with probe head rotation, and the best-in-class scanning SW to deliver powerful visualization of the EMC test. For boards with components of substantially different heights, the optional laser distance meter will enable you to follow the DUT’s topography and measure at a fixed distance from the DUT, automatically creating a precise 3D-model of the DUT.
